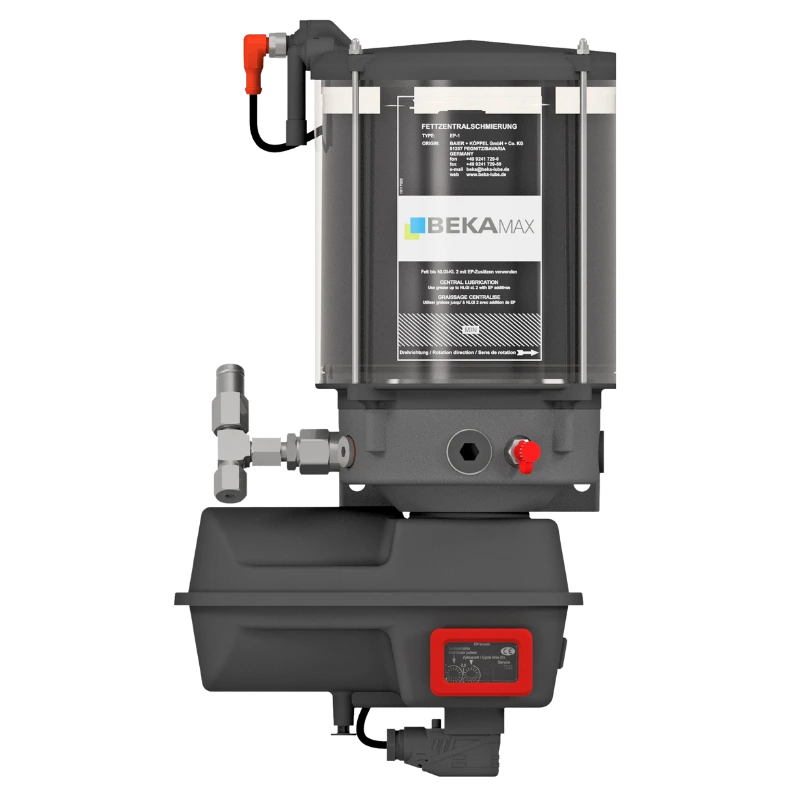

BEKA EP-1
Versatile progressive greasing for agricultural machinery, mobile equipment and fixed plant.
A proven electric lubrication system used in factory-fit and aftermarket applications. With grease options from NLGI 000 to NLGI 2 and up to three separate pump outlets, the EP-1 can be configured for a wide range of machines and operating conditions.
Where the BEKA EP-1 works best

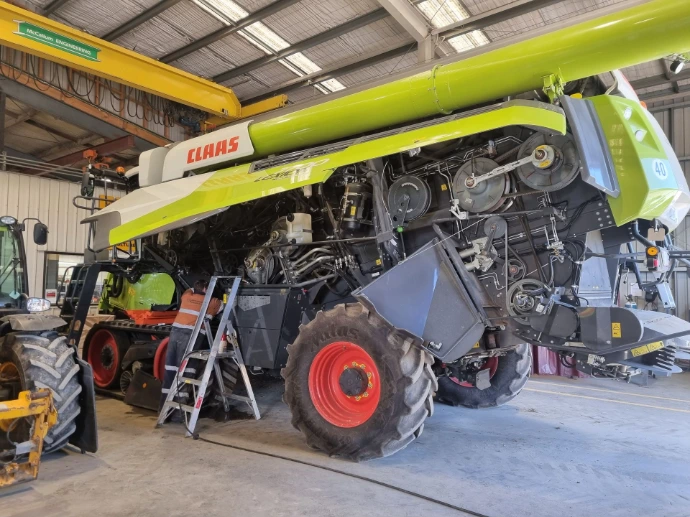

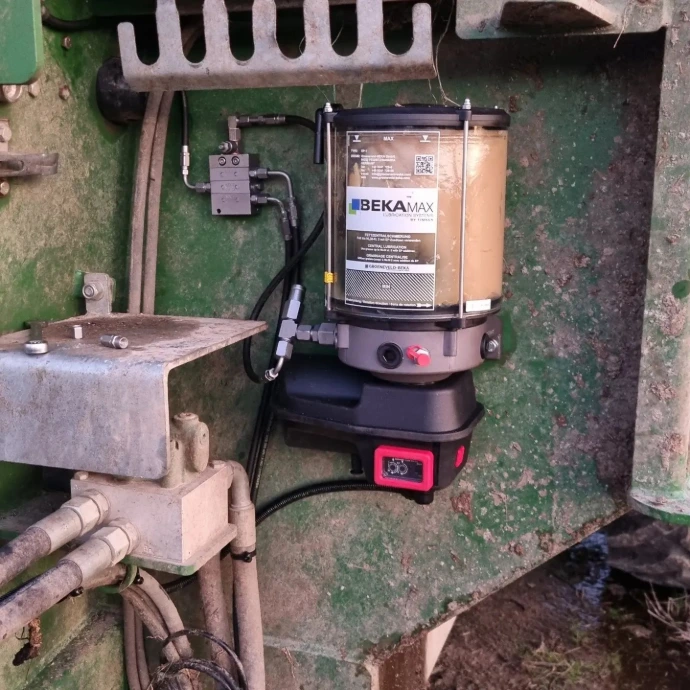

Agricultural machinery and implements
Excavators, loaders, telehandlers and construction equipment
Forestry, quarrying and mining machinery

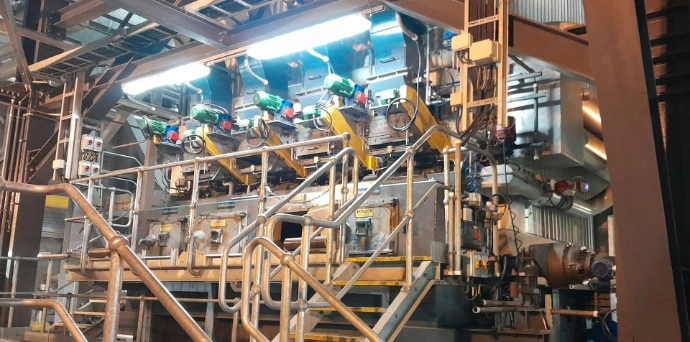

Fixed plant, crushers, screens and industrial machinery
Replacement or upgrade of existing factory-fit progressive systems
Is the BEKA EP-1 right for you?
You operate agricultural machinery, mobile equipment or fixed plant
Your machine suits a progressive lubrication layout
You need one or more separate lubrication circuits
You want a system that can use a wide range of common machinery greases
Your machine already has a factory-fit progressive system that needs servicing, replacing or extending
What an auto-greaser can save
Save time
Automatic lubrication reduces manual greasing and routine maintenance time.
Protect components
Consistent, measured lubrication helps reduce wear on pins, bushes and bearings.
Improve safety
Less manual greasing means less time climbing around machinery or accessing difficult lubrication points.
Reduce downtime
Reliable grease delivery helps reduce the risk of avoidable downtime.

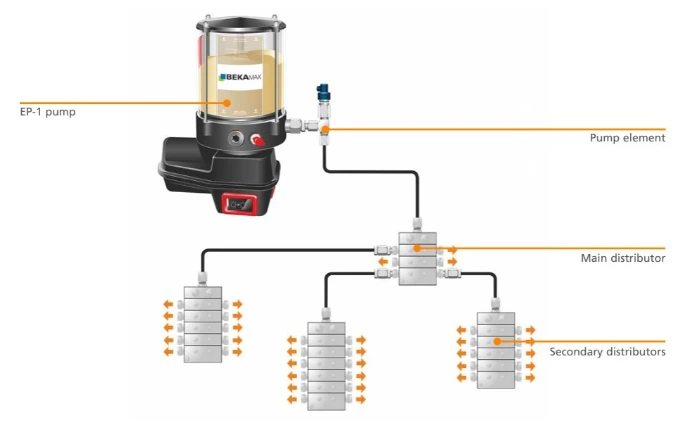

How the BEKA EP-1 works
Pump - An electric gear pump draws grease from the reservoir. An internal agitator blade helps move the lubricant towards the pump elements.
Distribute - Each pump outlet supplies a progressive distributor circuit. The distributor operates in sequence, dividing the grease and sending a measured amount to each connected lubrication point.
Confirm - Depending on the system configuration, a sensor can confirm distributor movement while optional level and pressure monitoring checks the grease supply and system pressure.
The EP-1 can operate up to three independent progressive circuits. Different pump elements can be selected so each circuit receives the output required for that part of the machine.

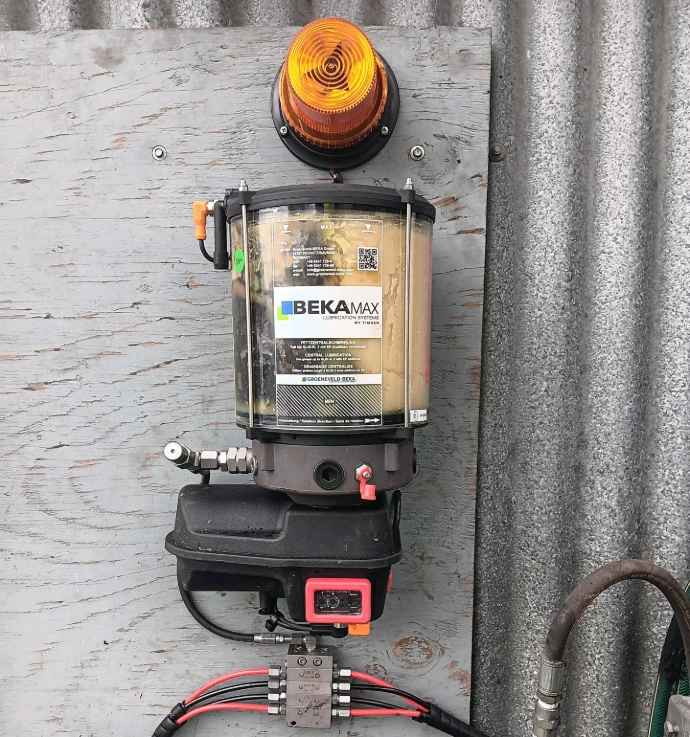

The operator can be warned straight away
System status - The EP-1 can be configured with visual or in-cab warnings to show when the system needs attention.
Low grease - Optional electrical level monitoring can signal when the reservoir needs refilling.
System fault - Pressure or distributor monitoring can identify when grease is not moving correctly through the system.
Custom warnings - Where required, LSL can configure additional alarms, warning lights or in-cab indicators to suit the machine and how it is operated.
Why choose the BEKA EP-1
Progressive system
Progressive distributors deliver grease to each connected lubrication point in a controlled sequence.
Up to three separate circuits
Up to three pump elements can supply independently operating lubrication circuits from one pump.
Wide grease range
Suitable for lubricant from NLGI 000 through to NLGI 2, covering a broad range of agricultural, mobile and industrial applications.
Flexible output and control
Fixed or adjustable output, with external or integrated control to suit the machine.
Fitted and calibrated to your machine
This is where LSL's experience matters. Getting the right amount of grease to the right point, at the right time.
Assess - We identify every lubrication point, attachment and operating condition, including any existing factory-fit components and any points that will still require manual greasing.
Design - We match the pump, reservoir, pump elements, progressive distributors and hose layout to the machine.
Install - Our technicians fit the system to your machine or plant, either on site or in the workshop. Most installations take around one to three days, depending on the machine and system complexity.
Calibrate - We set the grease output and operating intervals, test the system and confirm each lubrication point is receiving the correct amount.
Technical details and FAQ
Technical specifications
Specification | BEKA EP-1 |
Operating principle | Electric gear pump |
System type | Progressive |
Outlets | Up to 3 |
Delivery volume | Up to 0.17 cm³ per stroke, per outlet |
Grease range | NLGI 000 to NLGI 2 |
Operating temperature | –20°C to +70°C, depending on lubricant |
Maximum operating pressure | 350 bar |
Pressure-relief valve | 290 bar standard setting |
Reservoir options | 1.9, 4, 8 and 16 litres |
Power supply | 12 or 24 VDC |
Protection class | IP65 |
Frequently asked questions
The cost depends on the number of lubrication points, pump outlets, reservoir size, control and monitoring options, machine layout and installation requirements.
LSL will assess your machine or plant and provide a tailored quote.
The EP-1 can be used on agricultural machinery, excavators, loaders, telehandlers, forestry and quarry equipment, specialist vehicles and fixed industrial plant.
Each outlet can be fitted with its own pump element and supply a separate progressive distributor circuit.
Different pump-element outputs can be selected for circuits with different lubrication requirements. Not every machine needs three outlets, so LSL only uses the number required for the application.
A progressive distributor operates in sequence. If a connected point or grease line will not accept grease, the distributor stops and pressure rises within that circuit.
The pressure-relief valve protects the system. Optional pressure or distributor monitoring can also indicate that attention is required.
The BEKA EP-1 can pump a wide range of lubricants, from fluid NLGI 000 grease through to NLGI 2 grease.
The grease must still suit the machine manufacturer’s requirements, operating temperature and existing lubricant. Greases containing solid additives should only be used where specifically approved.
Ready to improve reliability and reduce downtime?
Talk to our lubrication experts about the BEKA EP-1 or get a tailored quote for your machine or plant.
