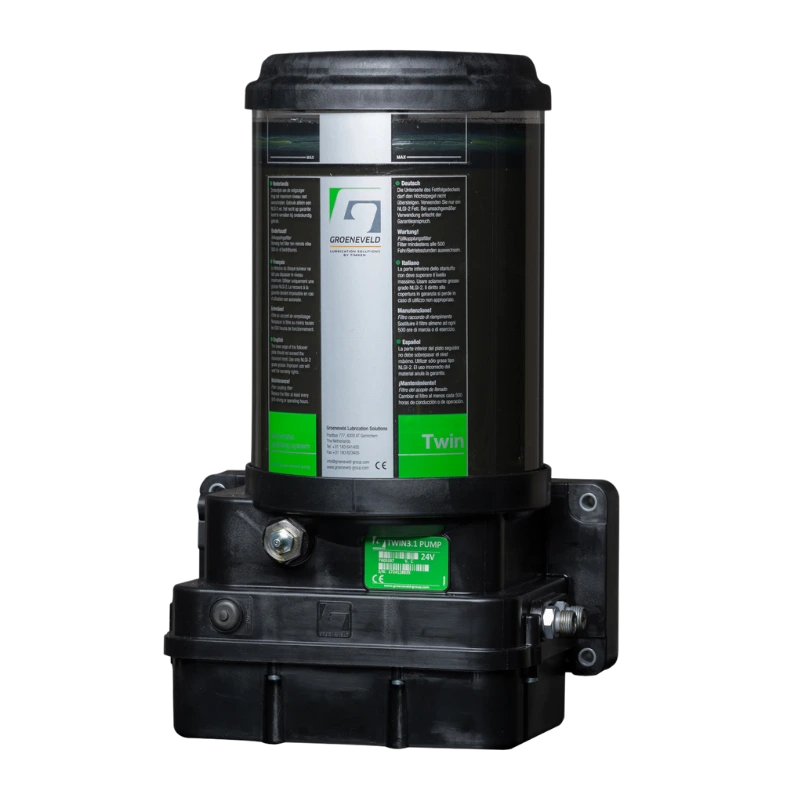

Groeneveld Twin
Heavy-duty dual-line greasing for medium to large machines or fixed plant, long line runs and demanding operating conditions.
An intelligent dual-line pump system that delivers the right amount of grease. A reliable system for medium to large machines, especially in tough environments.
Where the Groeneveld Twin works best

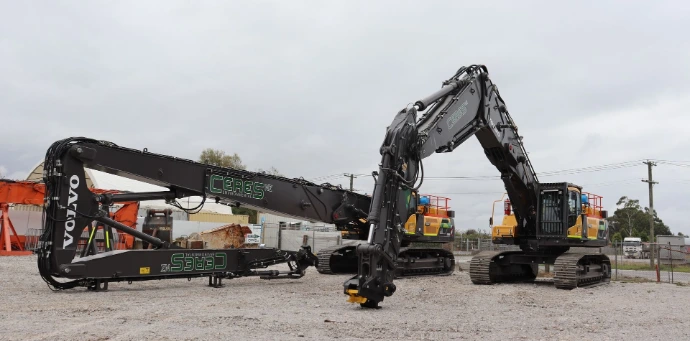

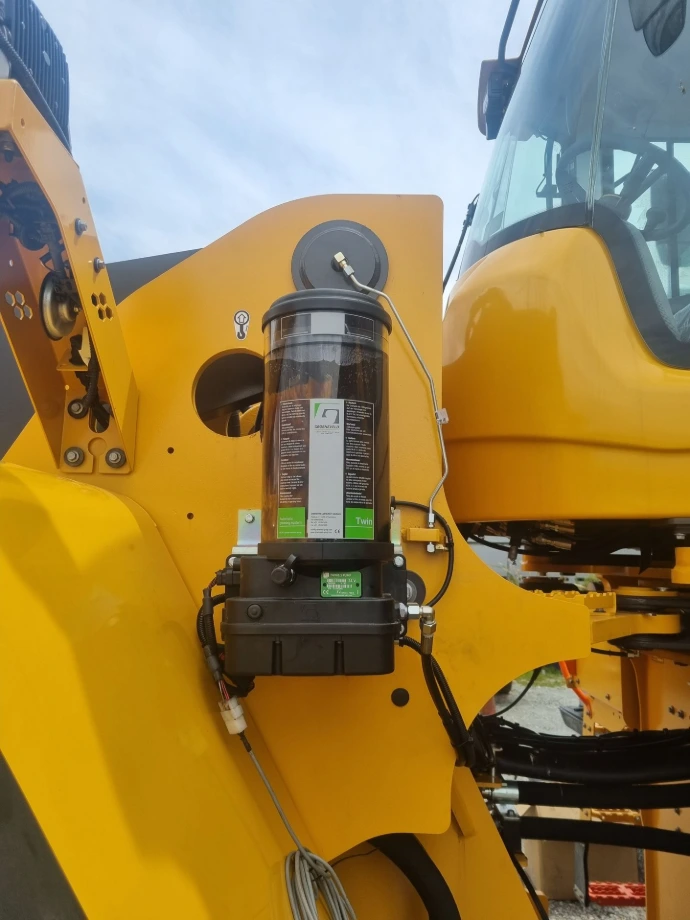

Excavators, dozers, wheel loaders and graders
Dump trucks and mobile plant

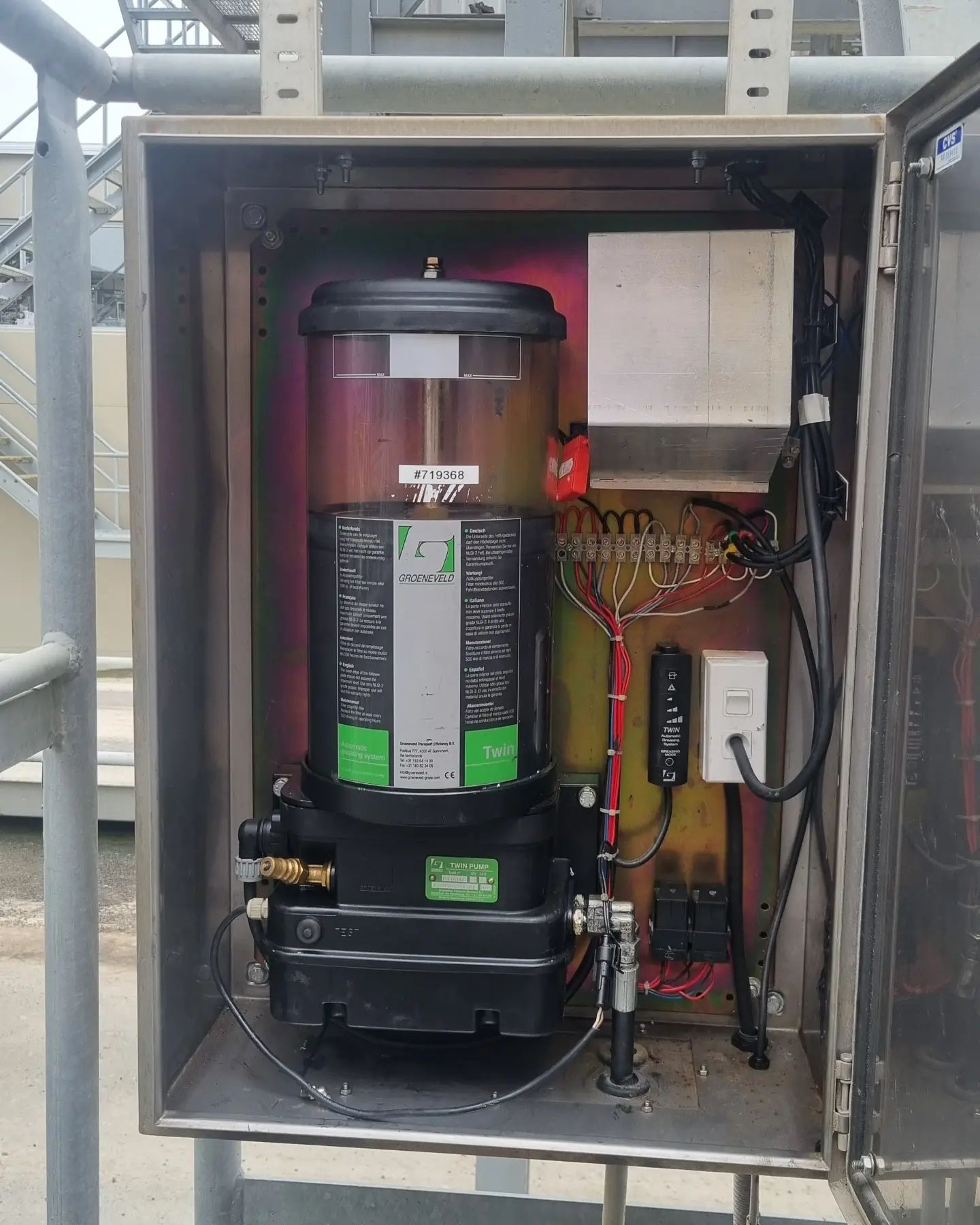

Fixed plant, waste and recycling equipment
Is the Groeneveld Twin right for you?
You operate a medium to large machine or fixed plant
Your equipment works in demanding conditions
You want to reduce manual greasing and maintenance time
What an auto-greaser can save
Save time
Automatic lubrication reduces manual greasing and routine maintenance time.
Protect components
Consistent, accurate lubrication reduces wear and extends component life.
Improve safety
Less manual greasing means less time accessing difficult lubrication points.
Reduce downtime
Reliable grease delivery and fault alerts help reduce the risk of avoidable downtime.

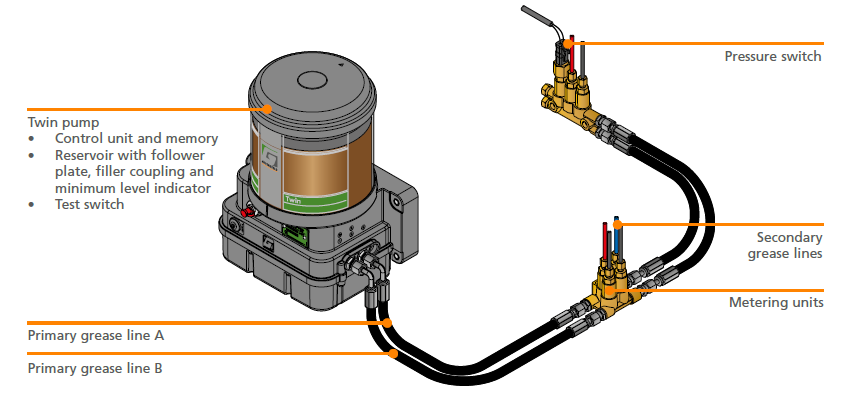

How the Groeneveld Twin works
Pump - The pump draws grease from the reservoir and alternates pressure between two primary grease lines.
Meter - Distribution blocks and metering units deliver a measured dose to each lubrication point.
Confirm - A pressure switch confirms the required pressure has reached the system, while built-in monitoring warns of low grease levels or faults.

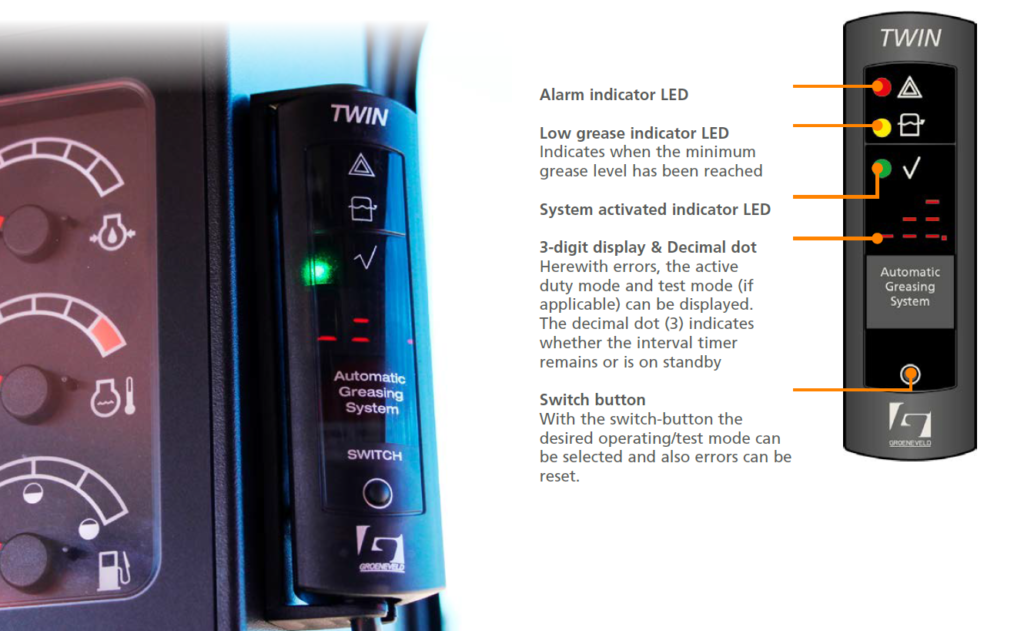

The operator knows straight away
Status - The green light confirms the system is active and the display shows the selected greasing mode.
Warning - The yellow light warns when the grease level is low, while the red light and fault code show when the system needs attention.
Adjust - The operator can select light, medium or heavy-duty greasing from the cab to suit the machine's workload.
Why choose the Groeneveld Twin
Dual-line system
Lubricates two independent lines from a single pump.
Adjustable output & cycle times
Tailored lubrication to your machine's needs.
Smart display
Built in control with alerts and diagnostics.
Built for tough conditions
IP6K9K pump protection and sealed metering assemblies for demanding environments.
Fitted and calibrated to your machine
This is where LSL's experience matters. Getting the right amount of grease to the right point, at the right time.
Assess - We identify every lubrication point, attachment and operating condition, including any points that still require manual greasing.
Design - We match the pump, reservoir, metering units and hose layout to the machine. Where a proven configuration already exists, we can use it as the starting point and tailor it to the application.

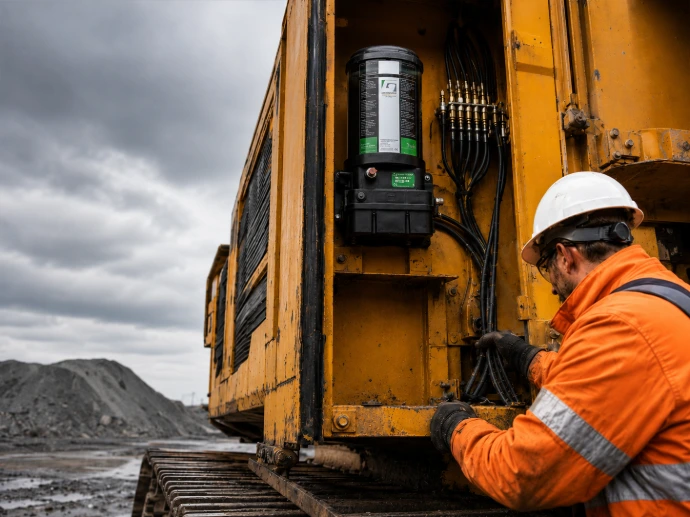

Install - Our technicians fit the system to your machine or plant, either on site or in the workshop. Most installations take around one to three days, depending on the machine and system complexity.
Calibrate - We set the grease output and operating intervals, test the system and confirm each lubrication point is receiving the correct amount.
Techincal details and FAQ
Technical specifications
Specification | Groeneveld Twin |
Operating principle | Electric piston pump |
System type | Dual-line |
Outlets | 2 |
Delivery volume | 12 cm³/min |
Grease range | NLGI-0 to NLGI-2 |
Operating temperature | –20°C to +70°C |
Maximum pressure | 250 bar |
Reservoir options | 4, 8 and 20 litres |
Power supply | 12 or 24 VDC |
Protection class | IP6K9K |
Frequently asked questions
The cost depends on the machine, number and location of lubrication points, reservoir size, attachments, installation time and whether the system is fitted on site or in the workshop.
LSL provides a tailored quote after reviewing the machine and how it operates. Send us the make and model, location, photos and details of any attachments, and we can recommend the right system and provide an installation price.
The Twin can be fitted to excavators, dozers, wheel loaders, dump trucks, graders, mobile plant and fixed plant. It can suit machines with relatively few lubrication points when those points are spread over a large machine, heavily loaded or exposed to demanding conditions.
A Twin system can lubricate up to 200 points, depending on the line lengths, system resistance, grease delivery and overall system design.
Yes. Quick-connect couplings can extend the automatic greasing system to buckets, grippers and other detachable equipment.
The Twin can use grease up to NLGI-2. The correct grade depends on the machine, operating temperature and working conditions, so grease compatibility should be checked before changing products.
Ready to improve reliability and reduce downtime?
Talk to our lubrication experts about the Groeneveld Twin or get a tailored quote for your machine.
